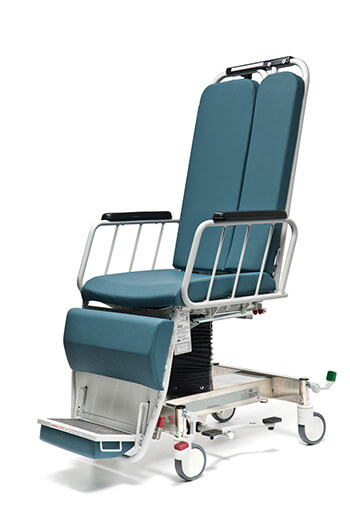

Video Imaging Chair (VIC)

VIC429_001

Chair designed specifically for modified barrium swallow studies for AP and Lateral imaging as a procedural chair for diagnosis and treatment. The shortened base is easy to maneuver in small rooms with large imaging equipment. The radiolucent backrest adjusts to a full upright position of 90 to clear, unobstructed view for imaging. Inserts are available for pediatric procedures. This unit adjusts easily from sitting to supine and provides a rotating seat section with a stable work surface during patient treatment. Transport, treatment, procedure, and recovery can be performed on the same unit to improve case turn around and stream-line patient handling.

Operational Benefits

  • The specially-designed back section accommodates the space confinements of large imaging equipment.
  • The radiolucent back section provides a clear, unobstructed site for imaging.
  • The back section attachment, used during transport, is easy to remove for radiological procedures.
  • A full range of patient positioning is achieved using the backrest and leg sections which adjust from 90˚ upright to full supine, and 10˚ Trendelenburg.

Economic Benefits

  • The easy-to-operate rotating seat section saves time in repositioning the patient for anterior-posterior and lateral imaging views.
  • The velcro positioning straps enable the care provider to securely position the patient in a time efficient manner.

Patient Outcome and Safety Benefits

  • The back section attachment extends the chair back to provide the patient added comfort and security during patient transfers from bed to chair, and during inter-facility transport.

Standard Features

  • Specially-Designed Back Section Accommodates the Space Confinements of Large Imaging Equipment
  • Radiolucent Back Section Provides a Clear, Unobstructed Site For Imaging Used During Transport, Easy To Remove For Radiological Procedures
  • Easy-To-Operate Rotating Seat Section Saves Time in Repositioning the Patient For Anterior-Posterior And Lateral Imaging Views
  • Dual Side Hydraulic Foot Pedal Controls For Height Adjustment: 23.5” to 31.5”
  • Pneumatic Assist Backrest: 0° to 90°
  • Trendelenburg: – 10°
  • Four Wheel Brake and Steer System Operable From Both Sides of Unit Feature 5 In Easy Rolling Casters
  • Easy To Clean Stainless Steel Base Cover
  • Polymer Coated Steel Litter Top
  • Fold-Down Foot Rest (Height Adjustable)
  • Accessory Wells (2 on Each Side)
  • Built-In Chart Holder and Push Bar
  • Swing Down – Tuck-Under Rails with Padded Armrests Maintain Patient Security
  • Patient Surface: 22” x 70.5”
  • Weight Capacity: 325 lbs

Included Mattress

  • Sectional 3″ Thick Mattress Pad Set
